Wide Range R.C. Audio Oscillator 191A

Wide Range R.C. Audio Oscillator 191A; Taylor Electrical (ID = 2405564) Equipment Wide Range R.C. Audio Oscillator 191A; Taylor Electrical (ID = 2405567) Equipment
Wide Range R.C. Audio Oscillator 191A; Taylor Electrical (ID = 2405565) Equipment Wide Range R.C. Audio Oscillator 191A; Taylor Electrical (ID = 2405566) Equipment
Use red slider bar for more.
Wide Range R.C. Audio Oscillator 191A; Taylor Electrical (ID = 2405564) Equipment
Taylor Electrical: Wide Range R.C. Audio Oscillator 191A [Equipment] ID = 2405564 1231x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wide Range R.C. Audio Oscillator 191A, Taylor Electrical Instruments Ltd.; Slough, Dover:

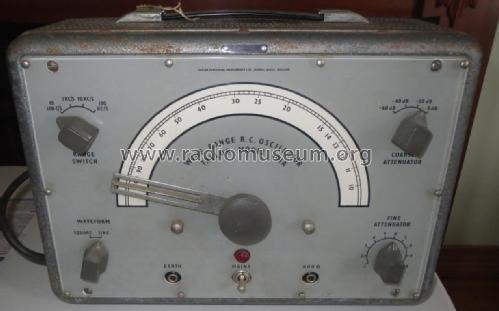

Taylor 191A Oscillator Front

Country:  Great Britain (UK)
Manufacturer / Brand:  Taylor Electrical Instruments Ltd.; Slough, Dover
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 5: 12AU7 12AU7 12AU7 6BW6 6X4
Details
Power type and voltage Alternating Current supply (AC) / 115, 210, 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Wide Range R.C. Audio Oscillator 191A - Taylor Electrical Instruments
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 250 x 150 mm / 13 x 9.8 x 5.9 inch
Notes

Audio Oscillator, has a Frequency range of 10-100,000Hz, Sine or Square wave with a maximum level out of 0 db

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

Model page created by Joshua Boxer. See "Data change" for further contributors.
