200250

200250; TCM Tchibo 'Marke' / (ID = 687587) Radio 200250; TCM Tchibo 'Marke' / (ID = 687583) Radio

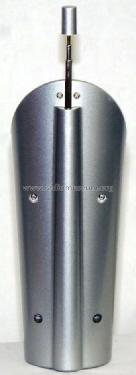

200250; TCM Tchibo 'Marke' / (ID = 687584) Radio 200250; TCM Tchibo 'Marke' / (ID = 687582) Radio
200250; TCM Tchibo 'Marke' / (ID = 687586) Radio
Use red slider bar for more.

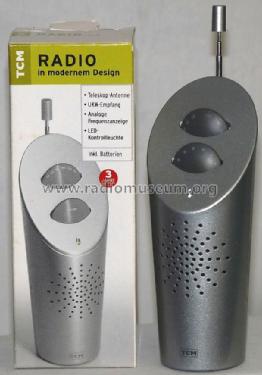

200250; TCM Tchibo 'Marke' / (ID = 687587) Radio
TCM Tchibo "Marke" /: 200250 [Radio] ID = 687587 608x870
Select picture or schematic to display from thumbnails on the right and click for download.
For model 200250, TCM (Tchibo 'Marke' / 'brand'), Hamburg

Country:  Germany
Manufacturer / Brand:  TCM (Tchibo "Marke" / "brand"), Hamburg
Year: 1992 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: 200250 - TCM Tchibo "Marke" / "brand",
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 68 x 173 x 70 mm / 2.7 x 6.8 x 2.8 inch
Notes UKW-Radio in modernem Design, Frequenzbereich: 87,5 - 108 MHz, LED-Betriebsanzeige, Teleskop 35 cm, LIN-IC TA7613AP (AM/FM-Radio, NF-V+E), Ersatz = TDA1083
Net weight (2.2 lb = 1 kg) 0.190 kg / 0 lb 6.7 oz (0.419 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.



All listed radios etc. from TCM (Tchibo "Marke" / "brand"), Hamburg
Here you find 38 models, 37 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
