Tascam 8 Track Recorder/Reproducer 38

Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1772169) R-Player Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969561) R-Player
Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969562) R-Player Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969564) R-Player
Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969565) R-Player Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969567) R-Player
Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969568) R-Player Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1969569) R-Player
Use red slider bar for more.
Tascam 8 Track Recorder/Reproducer 38; TEAC; Tokyo (ID = 1772169) R-Player
TEAC; Tokyo: Tascam 8 Track Recorder/Reproducer 38 [R-Player] ID = 1772169 1400x1498
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tascam 8 Track Recorder/Reproducer 38, TEAC; Tokyo:
Picture from Tascam 38 service manual

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1988 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder; Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Tascam 8 Track Recorder/Reproducer 38 - TEAC; Tokyo
Material Various materials
Dimensions (WHD) 410 x 461 x 317 mm / 16.1 x 18.1 x 12.5 inch
Notes

TEAC 8 Track Recorder/Reproducer Tascam 38

Low cost professional stereo tape 8 track Recorder/Reproducer

  • Tape format: 1/2” width.
  • Track format: 8 Track 8 channels 1 mm track width.
  • Reel size: 10.5".
  • Tape speed: 15 ips may  be varied ± 12%.
  • Wow and Flutter: < 0.06%. (weighted).

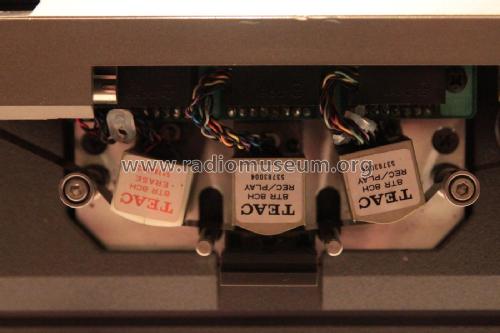

  • Heads: 3 Heads- 8 tracks erase, 2 heads 8 tracks record/reproducer.
  • Edit capabilities: edit each track and mixing between tracks with sync recording.
  • Motors: 3 - capstan DC servo motor (FG – Field Generator) ; Reels- 2 slotless DC motors.
  • Bias frequency: 150 kHz.

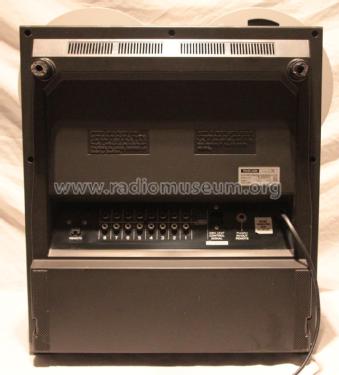

  • RCA line input – 8 inputs -10 dBV 300 mV, 50 kΩ unbalanced.
  • RCA mic input – 60 dbV (1 mV) 10 kΩ unbalanced.
  • RCA output – 8 outputs  -10 dBV (336 mV)  10 kΩ unbalanced.
  • Record level reference: 0 VU reference, 250 nWb/m flux level.
  • Distortion. <0.8% at 1 kHz. 0 VU.
  • S/N ratio: > 68 dB weighted, 92 dB with dbx processor.
  • Frequency response: 40 Hz – 20 kHz ±3 dB at 0 VU.
  • Crosstalk: Better than 50 dB between adjacent channnels.
  • Noise reduction: Tascam 38 may be connected to two units Tascam DX-4D (4 channels dBx noise reduction).
  • Power requirements: 100-240 V, 50/60 Hz, 100 W.
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Mentioned in - - Manufacturers Literature

Model page created by Moisés Piedade. See "Data change" for further contributors.
