A5300

A5300; TEAC; Tokyo (ID = 2288037) R-Player A5300; TEAC; Tokyo (ID = 2288039) R-Player
A5300; TEAC; Tokyo (ID = 2288041) R-Player A5300; TEAC; Tokyo (ID = 2288042) R-Player
A5300; TEAC; Tokyo (ID = 2288044) R-Player A5300; TEAC; Tokyo (ID = 2288045) R-Player
A5300; TEAC; Tokyo (ID = 2288047) R-Player
Use red slider bar for more.
A5300; TEAC; Tokyo (ID = 2288037) R-Player

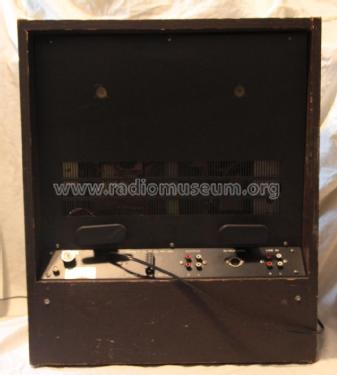

TEAC; Tokyo: A5300 [R-Player] ID = 2288037 1399x1624
Select picture or schematic to display from thumbnails on the right and click for download.
For model A5300, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1974 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: A5300 - TEAC; Tokyo
Material Various materials
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 443 x 537 x 190 mm / 17.4 x 21.1 x 7.5 inch
Notes

Type - 4 track 2 channel stereophonic
Heads - Erase head x1, Record head x1, playback head x2
Reel size - 7" maximum NAB reel
Tape speed - 7-1/2ips (19cm/s), 3-3/4ips (9.5cm/s)
Motors - 1 direct drive DC servo capstan motor, 2 coreless rotor type DC reel motors
WOW and Flutter - measured according to weighted NAB standard using TEAC YTT-2002/2003 flutter free tape. Above value is measured during playback.
  0.08% at 7-1/2ips (W-RMS)
  0.10% at 3-3/4ips (W-RMS)
Frequency response - overall from recording INPUT to PLAYBACK OUTPUT
  7-1/2ips 40Hz-24kHz +/-3dB
  3-3/4ips 40Hz-16kHz +/-3dB
Input impedance - LINE - 50kOhms, MIC-10kOhms
Output Load Impedance - LINE-0.3V/10kOhms, headphones - 0.3mV/8Ohms
BIAS Frequency - 100kHz (+/-5kHz, Push-pull oscillator)
Crosstalk Rejection - 35dB or more, adjacent track at 125kHz
Channel Separation - 45dB or more, channel to channel at 1kHz
Erase Efficiency - 68dB or more
Fast winding time - approx 150 s or less with 1800ft tape
Operating position - Horizontal or Veritical
Power consumption - 60W



Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
