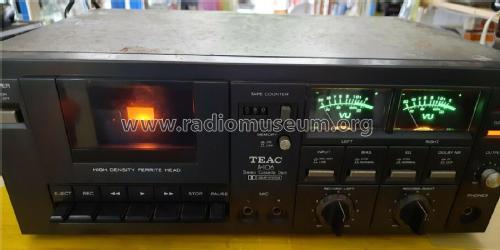

Stereo Cassette Deck A-106

TEAC; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 152788
    • Brand: Tascam

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck A-106 - TEAC; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 410 x 160 x 300 mm / 16.1 x 6.3 x 11.8 inch
  • Notes

  • Frontloading 2 Head Stereo Cassette Tape Deck with Dolby B and Chrome Tape Capability.
    3-Digit Mechanical Counter, Analog Needle Meters, Cassette Back Light.

    Wow and flutter: 0.08% (NAB weighted)
    Frequency Response (overall): 30-16,000 Hz (Chromium Dioxide Tape)
    Signal-to-Noise ratio (overall): 55dB w/o Dolby

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
