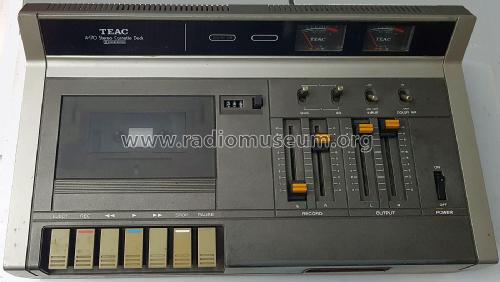

A-170; TEAC; Tokyo (ID = 2257193) R-Player A-170; TEAC; Tokyo (ID = 2593529) R-Player
Use red slider bar for more.
A-170; TEAC; Tokyo (ID = 2257072) R-Player
TEAC; Tokyo: A-170 [R-Player] ID = 2257072 1400x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-170, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1975/1976 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: A-170 - TEAC; Tokyo
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 136 x 255 mm / 16.9 x 5.4 x 10 inch
Notes

2 Head Stereo Cassette Deck with Dolby B and Chrome Tape Capability.
Belt Drive, Mechanical Tape Loading, Single Capstan Transport, Auto Shutoff.
Analog Needle Meters, 3-Digit Mechanical Counter. 2-Position Equalization Selector.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC FG servo
Tape Type: type I, CrO2
Noise Reduction: B
Signal to Noise Ratio: 47 dB
Wow and Flutter: 0.12 %
Total Harmonic Distortion: 2.5 %
Input: 275 mV (line), 0.35 mV (mic)
Output: 1 V (line)

Power supply selector at the bottom of the unit.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
