FireWire Audio - Midi Interface FW-1804

FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103033) Misc FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103030) Misc
FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103031) Misc FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103032) Misc
FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103034) Misc FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103035) Misc

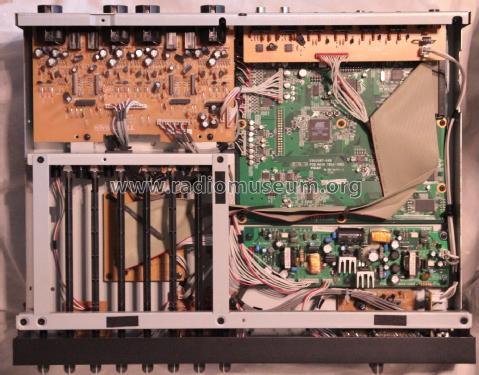

FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103036) Misc FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103037) Misc
Use red slider bar for more.
FireWire Audio - Midi Interface FW-1804; TEAC; Tokyo (ID = 2103033) Misc
TEAC; Tokyo: FireWire Audio - Midi Interface FW-1804 [Misc] ID = 2103033 1400x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model FireWire Audio - Midi Interface FW-1804, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 2005 ? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / DC 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FireWire Audio - Midi Interface FW-1804 - TEAC; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 19 x 3.75 x 14 inch / 483 x 95 x 356 mm
Notes

18-in/12-out audio interface
Records at up to 96kHz/24-bit
Four balanced XLR / 1/4" TRS mic/line inputs with phantom power
Four balanced 1/4" TRS line inputs
1/4" TRS insert jacks for channels 1-4
S/PDIF and ADAT digital input and output
Word clock in and out
Balanced 1/4" TRS monitor outputs

Headphone output with level control
Two MIDI inputs and four MIDI outputs
Assignable Footswitch jack
Includes GigaStudio 3 LE
Includes Steinberg Cubase LE 48-track 96kHz workstation software
Dimensions: 19"W x 3.75"H x 14"D
Weight: 12.6 lbs.

Net weight (2.2 lb = 1 kg) 12.6 lb (12 lb 9.6 oz) / 5.720 kg

Model page created by Bartosz Szwed. See "Data change" for further contributors.
