Stereo Receiver AG-6500
TEAC; Tokyo
- Country
- Japan
- Manufacturer / Brand
- TEAC; Tokyo
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 359677
-
- Brand: Tascam
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50-60 Hz, 100; 117; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Receiver AG-6500 - TEAC; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 470 x 160 x 400 mm / 18.5 x 6.3 x 15.7 inch
- Notes
-

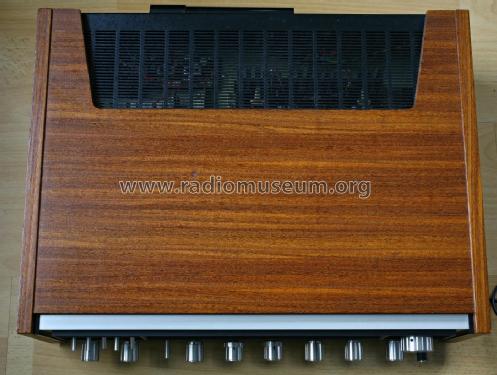

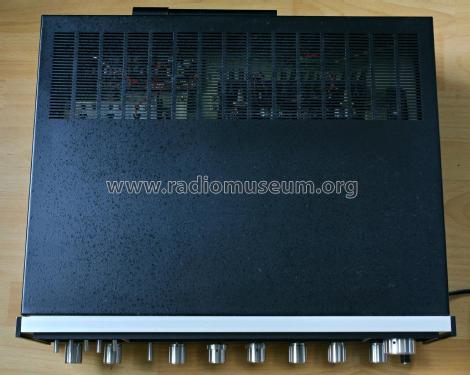

Gab es auch als Gerät mit Metallgehäuse. Hier sind beide Versionen in einem. Durch Weglassen des Holzgehäuses erhält man das vollgültige Metallgehäuse.
Spannungswähler im Gehäuseinneren.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Mentioned in
- HiFi-Jahrbuch 6
- Author
- Model page created by Peter Liska. See "Data change" for further contributors.
