• Country
• Japan

• Manufacturer / Brand
• TEAC; Tokyo

• Year
• 1990 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 266009

• • Brand: Tascam

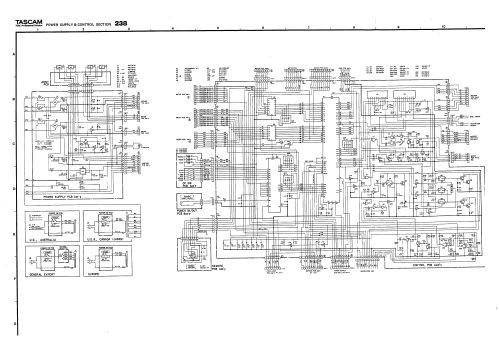

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tascam 238 Syncaset - TEAC; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 482 x 149 x 345 mm / 19 x 5.9 x 13.6 inch

• Notes

• Type: 2-head, single compact cassette deck

  Track System: 8-track, 8-channel

  Tape Speed: 9.5 cm/s

  Heads: 1 x record/playback, 1 x erase

  Motor: 1 x reel, 1 x capstan, 1 x aux

  Tape Type: Cr02

  Noise Reduction: DBX

  Frequency Response: 30Hz to 16kHz  (Cr02 tape)

  Signal to Noise Ratio: 90dB  (DBX)

  Wow and Flutter: 0.04%

  Total Harmonic Distortion: 0.8%

  Input: 300mV (line)

  Output: 0.3V (line)

• Net weight (2.2 lb = 1 kg)
• 9.6 kg / 21 lb 2.3 oz (21.145 lb)

• Author
• Model page created by Bartosz Szwed. See "Data change" for further contributors.

• Other Models

• Here you find 373 models, 286 with images and 46 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from TEAC; Tokyo
