TASCAM CD Rewritable Recorder CD-RW700

TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802334) R-Player TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802335) R-Player
TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802336) R-Player TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802337) R-Player
TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802338) R-Player TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802339) R-Player
TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802340) R-Player TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802341) R-Player
TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802342) R-Player TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802343) R-Player
Use red slider bar for more.
TASCAM CD Rewritable Recorder CD-RW700; TEAC; Tokyo (ID = 1802334) R-Player
TEAC; Tokyo: TASCAM CD Rewritable Recorder CD-RW700 [R-Player] ID = 1802334 1400x366
Select picture or schematic to display from thumbnails on the right and click for download.
For model TASCAM CD Rewritable Recorder CD-RW700, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 2000 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TASCAM CD Rewritable Recorder CD-RW700 - TEAC; Tokyo
Material Metal case
Shape Rack
Dimensions (WHD) 483 x 98 x 318 mm / 19 x 3.9 x 12.5 inch
Notes

Performance Specifications:

Recording Media: CD-R, CD-RW, CD-RDA, CD-RWDA
Recording Resolution: 16 bit
Recording Sample Rate: 44.1kHz
Sample Rate Conversion From: 32kHz-48kHz
Frequency Response: 20kHz ±0.5dB (Rec ±1dB)
Signal to Noise Ratio: >98dB Playback, >92dB Recording
Total Harmonic Distortion: <0.004% Playback, <0.005% Recording
Wow and Flutter: <0.001%)

• 2-U Rack Mount Design
• Uses Professional CD-R and CD-RW discs

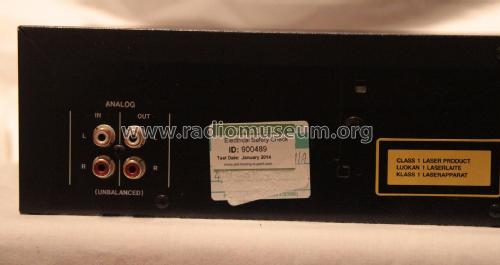

• Analog Unbalanced RCA I/O
• 24 bit A/D and D/A Converters
• SPDIF Digital Coax and Optical I/O
• Built-in RAM Buffer for Precise ID Marks
• Digital Gain Adjustment Function
• User Selectable Digital Fade In/Fade Out
• Headphone Output w/ Level Control
• Wireless Remote Included (RC-RW700)

See also similar model CD-RW750.

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
