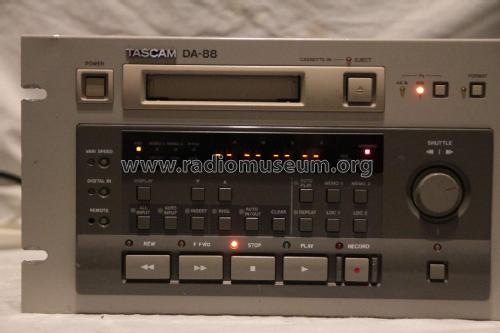

TASCAM High Resolution DTRS DA-88

TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234248) R-Player TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234249) R-Player
TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234250) R-Player TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234251) R-Player
TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234252) R-Player TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234253) R-Player
TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234254) R-Player
Use red slider bar for more.
TASCAM High Resolution DTRS DA-88; TEAC; Tokyo (ID = 2234248) R-Player
TEAC; Tokyo: TASCAM High Resolution DTRS DA-88 [R-Player] ID = 2234248 1400x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model TASCAM High Resolution DTRS DA-88, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1993 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle DSP, Digital Signal Processor
Wave bands - without
Details Special Tape or Cassette-Format; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TASCAM High Resolution DTRS DA-88 - TEAC; Tokyo
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 176 x 377 mm / 19 x 6.9 x 14.8 inch
Notes

Type: digital audio tape deck DTRS TAPE
Track System: 8-channel
Tape Speed: 15.9 mm/s
Recording Time: 108 minutes
Heads: rotary
D/A Converter: 16 bit linear
A/D Converter: 16 bit linear
Sampling Frequency: 48, 44.1kHz
Frequency Response: 20Hz to 20kHz
Dynamic Range: 92dB
Channel Separation: 90dB
Total Harmonic Distortion: 0.00496%
Digital Inputs: 25 pin D-sub
Digital Outputs: 25 pin D-sub

Matching remote control: Tascam RC-848

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
