TASCAM Line-Level Rack Mixer MM-200

TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173932) Ampl/Mixer TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173933) Ampl/Mixer
TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173934) Ampl/Mixer TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173936) Ampl/Mixer
TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173938) Ampl/Mixer TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173939) Ampl/Mixer
TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173940) Ampl/Mixer TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173941) Ampl/Mixer
Use red slider bar for more.
TASCAM Line-Level Rack Mixer MM-200; TEAC; Tokyo (ID = 2173932) Ampl/Mixer
TEAC; Tokyo: TASCAM Line-Level Rack Mixer MM-200 [Ampl/Mixer] ID = 2173932 1400x446
Select picture or schematic to display from thumbnails on the right and click for download.
For model TASCAM Line-Level Rack Mixer MM-200, TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1986 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TASCAM Line-Level Rack Mixer MM-200 - TEAC; Tokyo
Material Metal case
Shape Rack
Dimensions (WHD) 482 x 131 x 252 mm / 19 x 5.2 x 9.9 inch
Notes

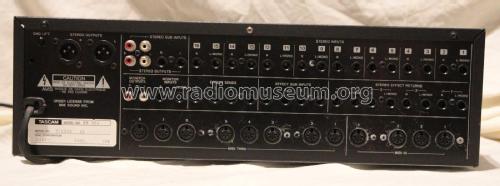

Analog IOs: in (stereo) x8, out (stereo), sub in (stereo), monitor out (stereo)
Midi IOs: 4 in, 8 thru
Other IOs: FX sub in x4, phones out
Busses/Subgroups: 2 (stereo)
Aux sends: sub in (stereo)
EQ: 2-band x8
Dynamics: BBE Professional

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
