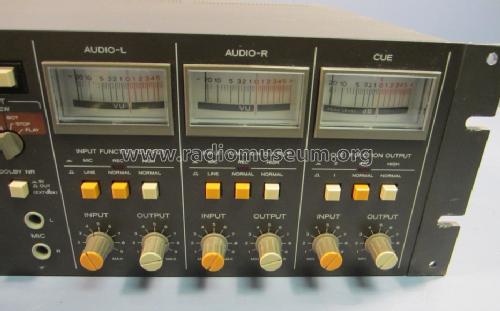

Tascam Multi Image Series 133-B

TEAC; Tokyo

  • Year
  • 1985 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 232054
    • Brand: Tascam

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player; Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tascam Multi Image Series 133-B - TEAC; Tokyo
  • Shape
  • Rack
  • Dimensions (WHD)
  • 482 x 147 x 345 mm / 19 x 5.8 x 13.6 inch
  • Notes
  • Tascam 2-Speed Tape Deck Model Multi Image Series 133-B.
    Made by Teac Corporation in Japan.
    Preamplifier output, 4 tracks, 3-channel. 2 Heads: erase and record/playback.
    Dual speed: 4.76 cm/s standard and 9.5 cm/s high speed.
    Three independent audio channels, two for audio and one for show control data.
    Dolby noise reduction, vertical VU meters.

  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
