TASCAM Portastudio 488 MKII (2)

TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313238) R-Player TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313240) R-Player

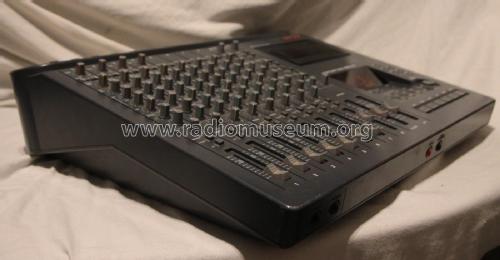

TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313241) R-Player TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313239) R-Player
TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313242) R-Player
Use red slider bar for more.
TASCAM Portastudio 488 MKII ; TEAC; Tokyo (ID = 2313238) R-Player
TEAC; Tokyo: TASCAM Portastudio 488 MKII [R-Player] ID = 2313238 1400x990
Select picture or schematic to display from thumbnails on the right and click for download.
For model TASCAM Portastudio 488 MKII (2), TEAC; Tokyo

Country:  Japan
Manufacturer / Brand:  TEAC; Tokyo
Brand

Tascam
Year: 1994 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 100; 120; 230; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: TASCAM Portastudio 488 MKII - TEAC; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 528.4 x 128 x 437 mm / 20.8 x 5 x 17.2 inch
Notes

Type: 2-head, single compact cassette deck
Track System: 8-track, 8-channel
Tape Speed: 9.5 cm/s
Heads: 1 x 8-track record/playback, 1 x 8-track erase
Motor: 1 x reel, 1 x capstan, 1 x aux
Tape Type: CrO2 Hi-bias Type II
Noise Reduction: DBX
Frequency Response: 40Hz to 14kHz  (Cr02 tape)
Signal to Noise Ratio: 90dB  (DBX)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 1.3%
Input: 300mV (line), 3mV (mic)
Output: 0.3V (line)

• ±12% Pitch Control
• Simultaneous Recording of 4-tracks
• 2 Auto Locate Points plus Return to Zero (RTZ)
• Repeat between Locate 1 and Locate 2
• Monitor Output with Independent Level Control
• CUE Master Level Control
• MONO Switch
• Monitor Select Switch from Group 1-2, Group 3-4, Tape CUE, stereo input 9-10, stereo    input 11-12, and 2-track IN
• Sync In/Out jacks allow track 8 to be connected to an external MIDI synchronizer (i.e. TASCAM MTS-30)

Designed to easily accommodate virtually any type of input including line level devices guitar, keyboards, stereo inputs and low impedance, XLR-type microphones. It also includes "phantom power" for use with high-quality condenser microphones. The built-in mixer features low-noise circuitry, with 12 inputs and 2 group busses. There's a separate input for a stereo master recorder. Plus a unique Multi-Mix mode with the capability of handling up to 20 inputs at mixdown.

Net weight (2.2 lb = 1 kg) 7.1 kg / 15 lb 10.2 oz (15.639 lb)
Mentioned in - - Manufacturers Literature (Tascam 488 MKII Quick Manual dated 1997)
Literature/Schematics (1) - - Manufacturers Literature (TASCAM Service manual 488 MkII effective December 1994)

Model page created by Bartosz Szwed. See "Data change" for further contributors.
