• Year
  • 1989
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 196670

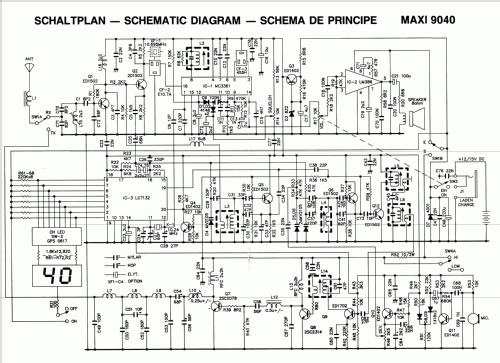

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 10695 / 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage and/or dry batteries / 10 x 1,2 or 10 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Power out
  • 0.6 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Maxi 9040 - Team Electronic GmbH;
  • Dimensions (WHD)
  • 75 x 190 x 55 mm / 3 x 7.5 x 2.2 inch
  • Notes
  • CB Handfunkgerät, 40K FM 4W, LED Display, Ladebuchse, Sendeleistung schaltbar HI/LOW. Zulassung: G400 052X CEPT-PR27D
  • Net weight (2.2 lb = 1 kg)
  • 0.550 kg / 1 lb 3.4 oz (1.211 lb)
  • Price in first year of sale
  • 140.00 DM
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
