• Country
• Germany

• Manufacturer / Brand
• TEC Dieter Beer; Wiesbaden

• Year
• 1985–1995 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 306897

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 150AYB22

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Batteries / addl. power jack / 12 - 14; A: 10 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

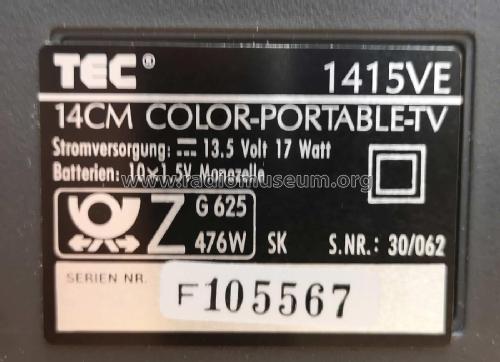

• Model: 14CM Color-Portable-TV 1415VE - TEC Dieter Beer; Wiesbaden

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 190 x 154 x 292 mm / 7.5 x 6.1 x 11.5 inch

• Notes

• Farbsystem PAL (B/G). VHF Kanäle 2 bis 12 + S 1 - 20, UHF Kanäle 21 bis 65. AV-Ein- und Ausgang.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Author
• Model page created by Axel Paap. See "Data change" for further contributors.
