• Country
• Germany

• Manufacturer / Brand
• TEC Dieter Beer; Wiesbaden

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144462

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• CXA1019M

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

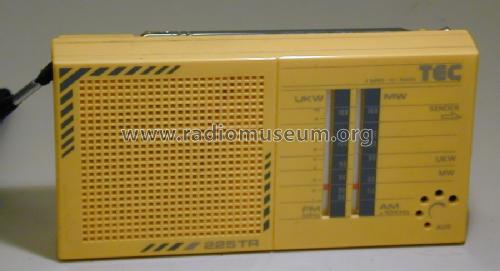

• Model: 2 Band-IC-Taschenradio 225 TR [beige] - TEC Dieter Beer; Wiesbaden

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 143 x 72 x 30 mm / 5.6 x 2.8 x 1.2 inch

• Notes

• TEC 225TR; 2 Band AM/FM Tragbares Radio, Handtrageschlaufe, deutsche Beschriftung. Made in HongKong. Das Modell gibt es zumindest auch in schwarz.

  Empfangsbereiche:
  UKW: 87,5 - 108 MHz,
  MW: 525 - 1605 kHz.

• Net weight (2.2 lb = 1 kg)
• 0.203 kg / 0 lb 7.2 oz (0.447 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
