2388 MID 23-069

TEC Dieter Beer; Wiesbaden

  • Year
  • 1986 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 205415

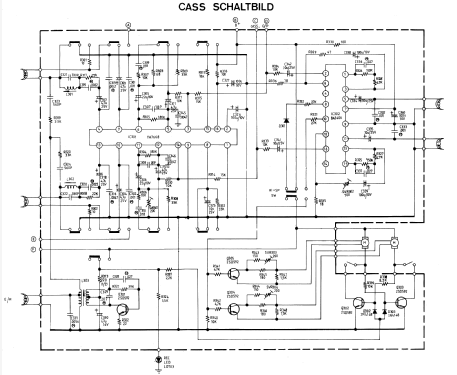

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2388 MID 23-069 - TEC Dieter Beer; Wiesbaden
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • 2 Band Rundfunkgerät mit Doppelcassettendeck und Plattenspieler. Ausgangsleistung 60 Watt max.
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
