260R; TEC Dieter Beer; (ID = 576631) Radio
TEC Dieter Beer;: 260R [Radio] ID = 576631 646x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 260R, TEC Dieter Beer; Wiesbaden

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1990 ? Category: Broadcast Receiver - or past WW2 Tuner
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: 260R - TEC Dieter Beer; Wiesbaden
Material Wooden case

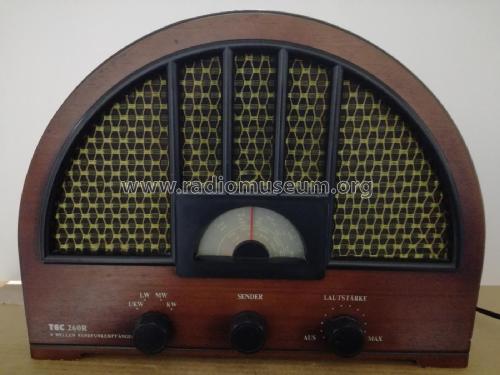

Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 380 x 285 x 150 mm / 15 x 11.2 x 5.9 inch

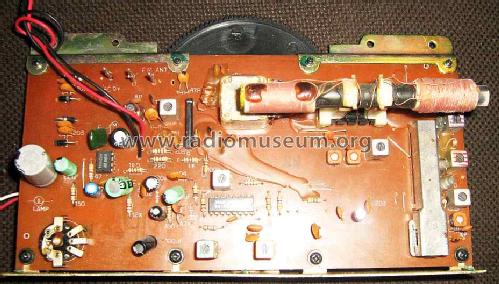

Notes Gehäuse domförmig, ähnlich Geräten der 30er Jahre. Skalenbeleuchtung, 4 Dioden, 3 x LIN-IC: BA4402/ TA7640A/ TBA820M, S.NR.: 01/074
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data - - Data from my own collection

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.



All listed radios etc. from TEC Dieter Beer; Wiesbaden
Here you find 140 models, 133 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
