Astrosound C3

Astrosound C3; TEC Dieter Beer; (ID = 1576791) Car Radio

Astrosound C3; TEC Dieter Beer; (ID = 1576792) Car Radio

Astrosound C3; TEC Dieter Beer; (ID = 1576793) Car Radio

Astrosound C3; TEC Dieter Beer; (ID = 1576794) Car Radio

Astrosound C3; TEC Dieter Beer; (ID = 1576795) Car Radio
Astrosound C3; TEC Dieter Beer; (ID = 1576542) Car Radio
Use red slider bar for more.
Astrosound C3; TEC Dieter Beer; (ID = 1576542) Car Radio
TEC Dieter Beer;: Astrosound C3 [Car Radio] ID = 1576542 933x287
Select picture or schematic to display from thumbnails on the right and click for download.
For model Astrosound C3, TEC Dieter Beer; Wiesbaden:

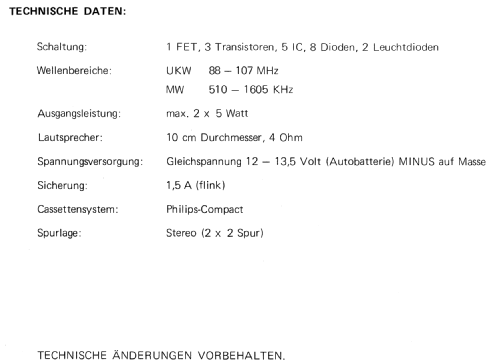

Aus Einbau- und Bedienungsanleitung

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1975 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 4: 2SK49 2SC1674 2SC1674 2SA102 LA1201 µPC554 TA7108P TA7204 TA7204
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12-13,5 Volt
Loudspeaker - This model requires external speaker(s). / Ø 10 cm = 3.9 inch
Power out 10 W (max.)
from Radiomuseum.org Model: Astrosound C3 - TEC Dieter Beer; Wiesbaden
Material Metal case
Shape Chassis only or for «building in»
Notes

DIN-Buchse für Verkehrsdecoder.

Mentioned in -- Original-techn. papers.

Model page created by Heribert Jung. See "Data change" for further contributors.
