Cobra 321 09-022 + 09-23

Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1082835) Radio

Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1082836) Radio

Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1082837) Radio

Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1082838) Radio
Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1080509) Radio
Use red slider bar for more.
Cobra 321 09-022 + 09-23; TEC Dieter Beer; (ID = 1080509) Radio
TEC Dieter Beer;: Cobra 321 09-022 + 09-23 [Radio] ID = 1080509 933x403
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cobra 321 09-022 + 09-23, TEC Dieter Beer; Wiesbaden:

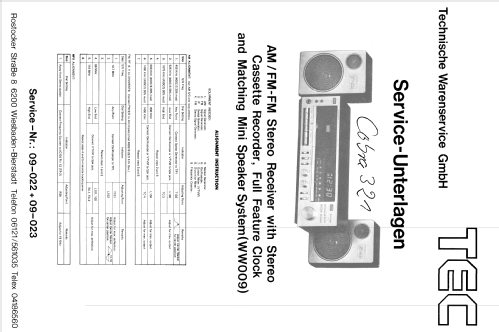

Servicemanual

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1978 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Cobra 321 09-022 + 09-23 - TEC Dieter Beer; Wiesbaden
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes Stereo Uhrenradio mit Cassettenspieler und Lautsprecherboxen,
2x 2 Watt, Frequenzbereich 50-10500 Hz.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
