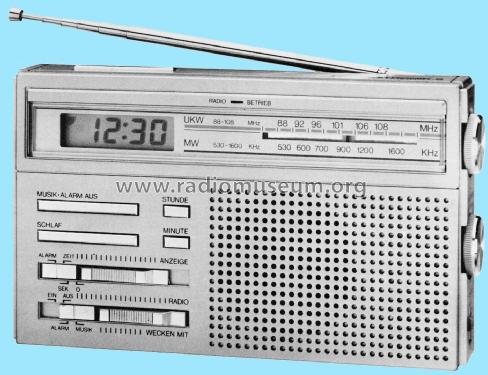

TEC Dieter Beer;: Digitronic 2 [Radio] ID = 1846609 1400x1074
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digitronic 2, TEC Dieter Beer; Wiesbaden

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: ST1502 ST1502 ED1702 TDA1083 µPD833G
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Digitronic 2 - TEC Dieter Beer; Wiesbaden
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 184 x 110 x 35 mm / 7.2 x 4.3 x 1.4 inch
Notes

AM/FM Reise-Uhrenradio.
LCD-24-Stunden-Anzeige beleuchtet, LED-Betriebsanzeige, Wecken mit Radio oder Summer, Einschlaf-Automatik, Klang-Schalter, Ohrhörer, ausklappbarer Tischaufsteller, Trageschlaufe.
Gehäusefarbe: Silbermetallic. Anschlussbuchse für externes Netzteil.
Das Gerät wurde im TEC Katalog angeboten zeigt aber kein entsprechendes Markenlogo.

Batterietype: R6

Gerät Made in Hong Kong

Net weight (2.2 lb = 1 kg) 0.420 kg / 0 lb 14.8 oz (0.925 lb)
Source of data -- Original prospect or advert
Mentioned in -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
