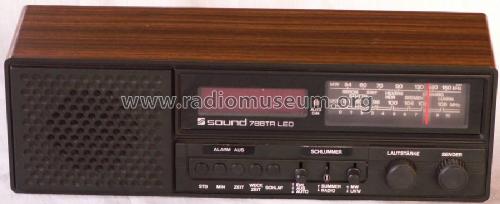

Sound 788 TR LED; TEC Dieter Beer; (ID = 1515835) Radio
TEC Dieter Beer;: Sound 788 TR LED [Radio] ID = 1515835 900x368
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sound 788 TR LED, TEC Dieter Beer; Wiesbaden

Country:  Germany
Manufacturer / Brand:  TEC Dieter Beer; Wiesbaden
Year: 1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: TDA1083 TMS3450
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Sound 788 TR LED - TEC Dieter Beer; Wiesbaden
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 325 x 105 x 100 mm / 12.8 x 4.1 x 3.9 inch
Notes AM/FM-Tisch-Uhrenradio mit 24-Stunden-Anzeige.
Automatische Helligkeitsregelung, Wecken durch Radio oder Signal, Weckwiederholung (Sensor), Einschlaf-Automatik, Notstrombatterie (9V Block), Ohrhörerbuchse.
Gehäusefarbe: nussbaum/schwarz.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)

Model page created by Franz Scharner. See "Data change" for further contributors.
