• Country
• Germany

• Manufacturer / Brand
• TEC Dieter Beer; Wiesbaden

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205348

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 10 x 1,5 / 15 Volt

• from Radiomuseum.org

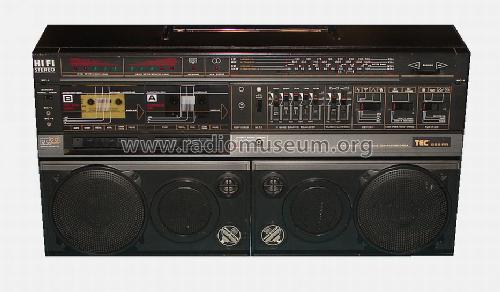

• Model: 4 Band-Stereo-Doppelcassetten-Radiorecorder 866-RR/06-001 - TEC Dieter Beer; Wiesbaden

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• TEC Portable 4 Band Stereo Doppelcassetten-Radiorecorder Model 866RR.
  Tuning Range: FM 87,5 - 108 MHz, SW 7 -23 MHz,
  AM 525 - 1605 kHz, LW 150 - 300 kHz.
  5 Band Graphic Equalizer (100, 330, 1000, 3000, 10000 Hz)
  Normal- und Chrome Tape, Continuous Play, High Speed Dubbing

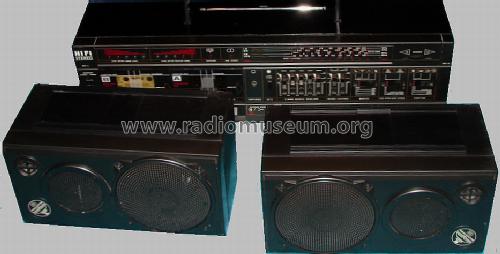

  Abnehmbare Boxen (3-Wege System)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
