- Country
- United States of America (USA)
- Manufacturer / Brand
- Tech-Master Products Co.; Brooklyn (NY)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196747

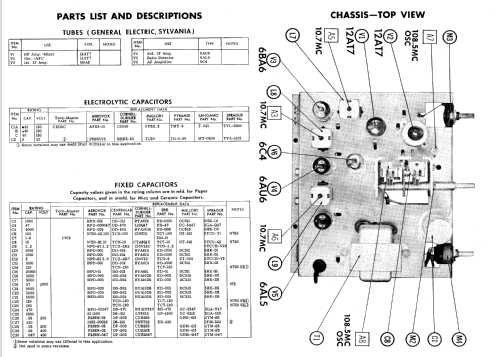

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-18 - Tech-Master Products Co.;
- Shape
- Chassis only or for «building in»
- Notes
-

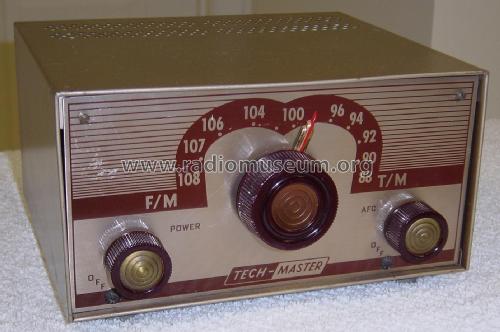

Tech-Master model FM-18 is an AC operated FM tuner.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 14)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
