• Country
• Germany

• Manufacturer / Brand
• Technisch-Physikalische Werkstätten, (TPW), VEB; Thalheim (Ostd.)

• Year
• 1959

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 134760

• • alternative name: TPW

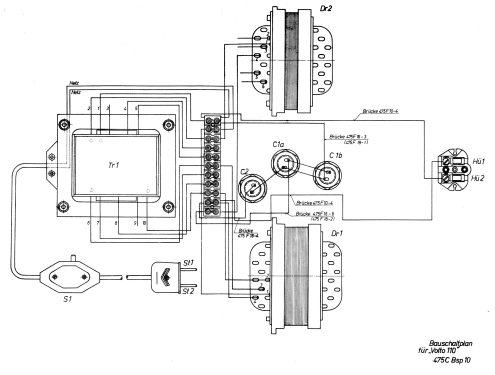

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Spannungsgleichhalter Volto 110 - Technisch-Physikalische Werkst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 230 x 170 mm / 11 x 9.1 x 6.7 inch

• Notes
• TWP Volto 110, magnetischer Spannungsgleichhalter; Primär 220 V +10 %, -20 %, Sekundär 220 V ±3 %, N= 200 W, cos phi= 1.

• Net weight (2.2 lb = 1 kg)
• 10.1 kg / 22 lb 3.9 oz (22.247 lb)

• Price in first year of sale
• 187.00 MDN

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
