C52

C52; Technifrance; (ID = 276670) Radio

C52; Technifrance; (ID = 482736) Radio
C52; Technifrance; (ID = 369220) Radio C52; Technifrance; (ID = 2141626) Radio
C52; Technifrance; (ID = 2141630) Radio C52; Technifrance; (ID = 2141629) Radio
C52; Technifrance; (ID = 2141627) Radio C52; Technifrance; (ID = 2141628) Radio
C52; Technifrance; (ID = 2141632) Radio C52; Technifrance; (ID = 2141631) Radio
C52; Technifrance; (ID = 2141633) Radio C52; Technifrance; (ID = 2141634) Radio
Use red slider bar for more.
C52; Technifrance; (ID = 369220) Radio
Technifrance;: C52 [Radio] ID = 369220 774x700

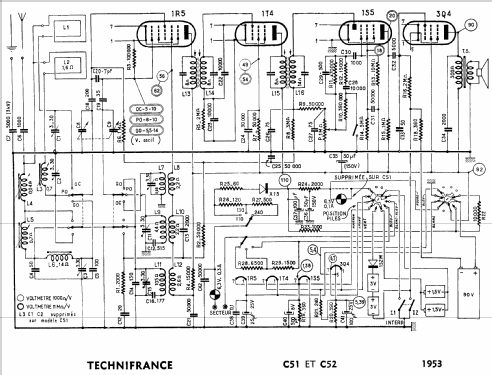

Select picture or schematic to display from thumbnails on the right and click for download.
For model C52, Technifrance; Neuilly-sur-Seine

Country:  France
Manufacturer / Brand:  Technifrance; Neuilly-sur-Seine
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3Q4
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 110-240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: C52 - Technifrance; Neuilly-sur-
Material Wooden case
Dimensions (WHD) 300 x 200 x 150 mm / 11.8 x 7.9 x 5.9 inch
Notes Bois, Gaîné cuir
External source of data Serge Laffont/Martin Renoth

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Technifrance; Neuilly-sur-Seine
Here you find 22 models, 14 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
