• Country
• Australia

• Manufacturer / Brand
• Tecnico Electronics Pty Ltd Sydney

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186319

• • Brand: Tecnico-Aristocrat, Tecnicorda, Pye-Tecnico

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6U7G 6B6G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 215; 240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 8 inch = 20.3 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

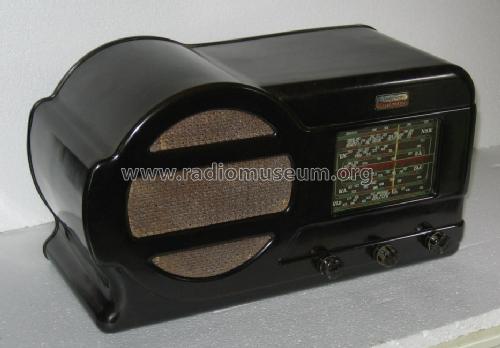

• Model: Aristocrat 750 - Tecnico Electronics Pty Ltd

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 439 x 244 x 205 mm / 17.3 x 9.6 x 8.1 inch

• Notes
• The price below is for the mahogany and walnut coloured bakelite cabinets. It was also available in a urea cabinet in other colours for £1/1/- extra. This model was made with either an electrodynamic or a permanent magnet speaker.

• Price in first year of sale
• 24.00 Aus£

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. VI

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
