FM Stereo MW/SW DSP Receiver PL-360

Tecsun 德生通用电器制造有限公司 Tecsun General Electric Manufacturing Co., Ltd; Dongguan (Guangdong, SC)

Data
Forum
Pictures
Collections

  • Year
  • 2010
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 268045

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / R6: 3 × 1,5 / USB: 5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
  • Power out
  • 0.35 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: FM Stereo MW/SW DSP Receiver PL-360 - Tecsun 德生通用电器制造有限公...
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 53 x 159 x 26 mm / 2.1 x 6.3 x 1 inch
  • Notes

  • Frequency Range / Tuning step
    Frequency Modulation (FM)
    76 – 108 MHz; smart step 0.01/0.1 MHz
    Can choose the frequency coverage:
    Standard: 87 – 108 MHz (except for Japan, Germany, Russia, other than national standards)
    Germany: 87.5 – 108 MHz
    Japan: 76 – 108 MHz (including part of the campus radio and domestic 4 – 5 channel TV Sound)

    Shortwave (SW)

    2300 – 21950 kHz; Smart Step 1 / 5 kHz

    Wave (MW)
    522 – 1620 kHz; Smart Step 1 / 9 kHz (for Asia, Africa and Europe)
    520 – 1710 kHz; Smart Step 1 / 10 kHz (for North America)
    150 – 1620 kHz; (covering the long-wave) Smart Step 1 / 9 kHz

    Noise limited sensitivity:
    Frequency Modulation (FM) (S / N = 30dB) better than 3 µV
    AM (MW) (S / N = 26dB) better than 2 mV / m Built-in antenna
    AM (MW) (S / N = 26dB) better than 1 mV / m external antenna
    Longwave (LW) (S / N = 26dB) better than 12 mV / m Built-in antenna
    Longwave (LW) (S / N = 26dB) better than 4 mV / m external antenna
    Shortwave (SW) (S / N = 26dB) better than 30 µV

    Optional:
    Frequency Modulation (FM)> 60 dB
    AM (MW)> 60 dB
    Longwave (LW)> 60 dB
    Shortwave (SW)> 60 dB

    FM stereo separation: better than 25 dB
    Output power:
    Speaker: 350 mW
    Headphones: 10 mW / 8 – 32Ω stereo headphones
    Storage memory count: 450
    Frequency Modulation (FM) 100
    The long-wave (MW) 100
    Shortwave (SW) 250

    Awakened mode: radio alarm rang
    Quiescent Current:
    Frequency Modulation (FM) <25mA
    AM / long wave (MW / LW) <23mA
    Shortwave (SW) <27mA
    Shutdown standby <90µA

    Power supply:
    Battery: 3 R6 (V) batteries or rechargeable batteries
    External power jack: USB specification / DC 5V 300mA

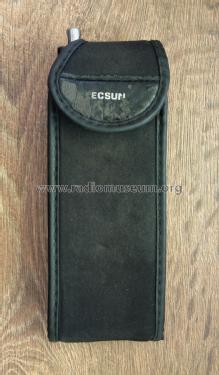

    Accessories: Stereo headphones, protective cover, in the long-wave external antenna, manual, certificate, service guarantee

  • Net weight (2.2 lb = 1 kg)
  • 0.128 kg / 0 lb 4.5 oz (0.282 lb)
  • Mentioned in
  • -- Original-techn. papers.
