Six Transistor

Tedelex, Johannesburg

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 262347

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

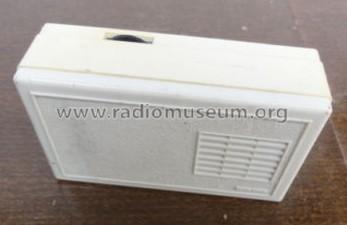

  • Model: Six Transistor - Tedelex, Johannesburg
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 110 x 70 x 40 mm / 4.3 x 2.8 x 1.6 inch
  • Notes
  • Metal front.

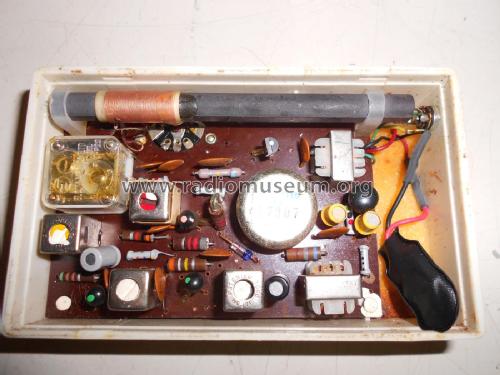

    Volume control - jack for earphone - ferrite rod antenna.

    Made in Hong Kong.

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
