Cornet 1278

Cornet 1278; Tefag; Telephon (ID = 2230094) Speaker-P Cornet 1278; Tefag; Telephon (ID = 2230095) Speaker-P
Cornet 1278; Tefag; Telephon (ID = 2230096) Speaker-P Cornet 1278; Tefag; Telephon (ID = 2230097) Speaker-P
Cornet 1278; Tefag; Telephon (ID = 2230098) Speaker-P Cornet 1278; Tefag; Telephon (ID = 215742) Speaker-P
Cornet 1278; Tefag; Telephon (ID = 52009) Speaker-P Cornet 1278; Tefag; Telephon (ID = 172843) Speaker-P
Cornet 1278; Tefag; Telephon (ID = 172844) Speaker-P Cornet 1278; Tefag; Telephon (ID = 336761) Speaker-P
Use red slider bar for more.
Cornet 1278; Tefag; Telephon (ID = 2230094) Speaker-P
Tefag; Telephon: Cornet 1278 [Speaker-P] ID = 2230094 1400x1697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cornet 1278, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1928/1929 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Cornet 1278 - Tefag; Telephon
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 288 x 380 x 310 mm / 11.3 x 15 x 12.2 inch
Notes

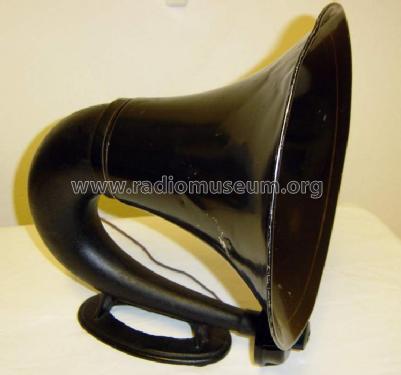

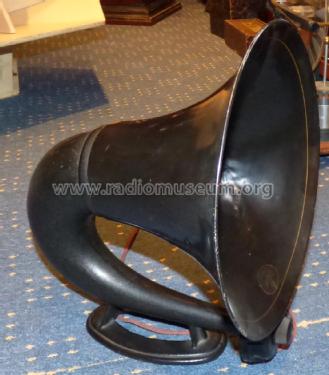

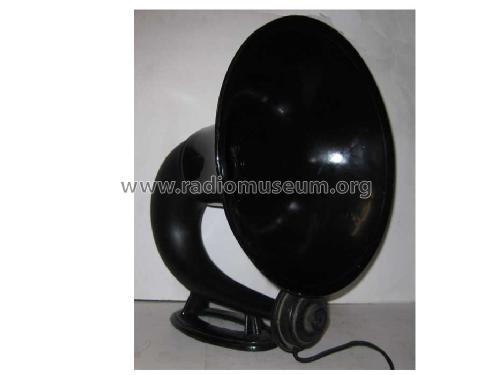

Trichterlautsprecher, Niedrigbauweise (stark gebogen)

2000 Ohm; Schalldose Type 1261, Höhe 39cm

Net weight (2.2 lb = 1 kg) 3.130 kg / 6 lb 14.3 oz (6.894 lb)
Price in first year of sale 24.00 RM
Source of data Radio-Diehr, Berlin, 1928/1929 / Radiokatalog Band 1, Ernst Erb
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
