EK24

EK24; Tefag; Telephon (ID = 6315) Radio EK24; Tefag; Telephon (ID = 6316) Radio
EK24; Tefag; Telephon (ID = 6317) Radio EK24; Tefag; Telephon (ID = 6318) Radio
EK24; Tefag; Telephon (ID = 6319) Radio
Use red slider bar for more.
EK24; Tefag; Telephon (ID = 6315) Radio
Tefag; Telephon: EK24 [Radio] ID = 6315 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model EK24, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner:

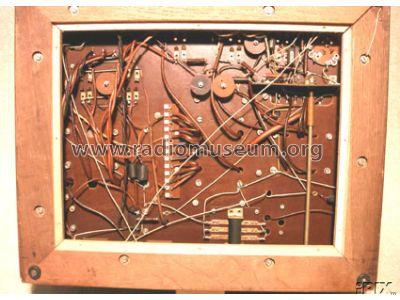

Bild aus ebay

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: REN904 REN904 RE604 RE604 RGN2004 RGN2004
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: EK24 - Tefag; Telephon
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Kraftverstärker und Radio.
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference FS-Bestückungstabelle (aber Fehler)
