Heim-Lautsprecher 105

Heim-Lautsprecher 105; Tefag; Telephon (ID = 174021) Speaker-P Heim-Lautsprecher 105; Tefag; Telephon (ID = 174024) Speaker-P

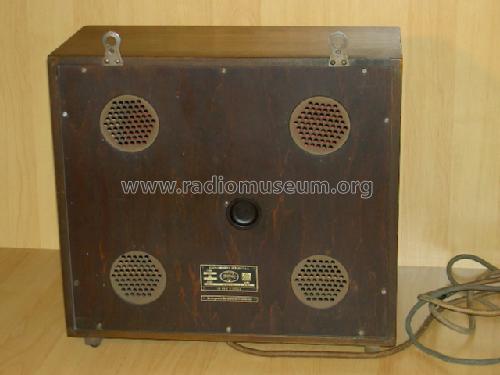

Heim-Lautsprecher 105; Tefag; Telephon (ID = 174025) Speaker-P
Use red slider bar for more.
Heim-Lautsprecher 105; Tefag; Telephon (ID = 174021) Speaker-P
Tefag; Telephon: Heim-Lautsprecher 105 [Speaker-P] ID = 174021 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Heim-Lautsprecher 105, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1931/1932 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles).
Power out
from Radiomuseum.org Model: Heim-Lautsprecher 105 - Tefag; Telephon
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 185 x 370 mm / 15.7 x 7.3 x 14.6 inch
Notes Lautsprecher wurde von Tefag zum Gerät "300W" (Geradeausempfänger) aus dem gleichen Jahrgang empfohlen.
Price in first year of sale 48.00 RM
Source of data - - Data from my own collection

Model page created by Bernd Schmitz. See "Data change" for further contributors.
