Kraftverstärker K1,8 (1,8EKW)

Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1618651) Radio
Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1618648) Radio Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1321269) Radio
Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1321271) Radio Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1618650) Radio
Use red slider bar for more.

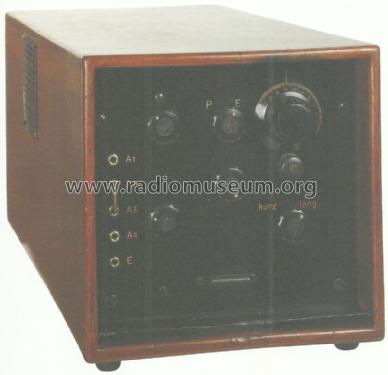

Kraftverstärker K1,8 ; Tefag; Telephon (ID = 1618648) Radio
Tefag; Telephon: Kraftverstärker K1,8 [Radio] ID = 1618648 800x773
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kraftverstärker K1,8 (1,8EKW), Tefag; Telephon Aktiengesellschaft vorm. J. Berliner:
Ficha tecnica

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: REN1004 REN804 RE604 R250
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Kraftverstärker K1,8 - Tefag; Telephon
Material Wooden case
Dimensions (WHD) 620 x 370 x 300 mm / 24.4 x 14.6 x 11.8 inch
Notes

Empfänger mit Kraftverstärker.

Price in first year of sale 240.00 RM +
Source of data Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference FS-Bestückungstab. (wahrsch. m.Fehler)
