Radiokoffer KC1-1/Ko I

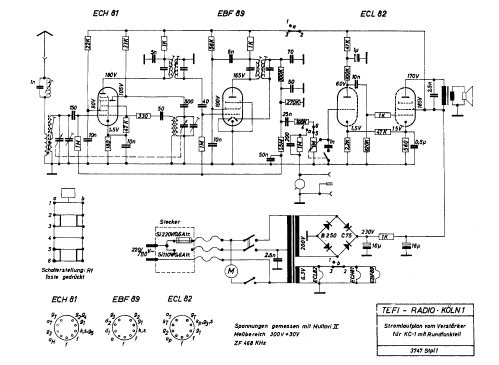

Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 2117242) R-Player
Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435508) R-Player Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435511) R-Player
Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435512) R-Player Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435513) R-Player
Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435514) R-Player Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435515) R-Player
Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435516) R-Player Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435517) R-Player
Use red slider bar for more.
Radiokoffer KC1-1/Ko I; Tefi-Apparatebau; (ID = 435508) R-Player
Tefi-Apparatebau;: Radiokoffer KC1-1/Ko I [R-Player] ID = 435508 779x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiokoffer KC1-1/Ko I, Tefi-Apparatebau; Porz bei Köln

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1960 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECH81 EBF89 ECL82
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details Other Recorder/Player; Radio with other functions
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Radiokoffer KC1-1/Ko I - Tefi-Apparatebau; Porz bei
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 185 x 340 mm / 14.2 x 7.3 x 13.4 inch
Notes Schallbandspieler mit MW-Radio. Im Deckel Aufbewahrungsplatz für Schallbänder. Im Jüttemann als KC1/KoU geführt.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data - - Data from my own collection

Model page created by Reinhard Hanschke. See "Data change" for further contributors.
