Standard-Super TSS446 GW

Standard-Super TSS446 GW; Tefi-Apparatebau; (ID = 2114000) Radio

Standard-Super TSS446 GW; Tefi-Apparatebau; (ID = 2116872) Radio
Use red slider bar for more.
Standard-Super TSS446 GW; Tefi-Apparatebau; (ID = 2114000) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Tefi-Apparatebau; Porz bei Köln
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH5 UCH5 UBL3 UY3
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: Standard-Super TSS446 GW - Tefi-Apparatebau; Porz bei
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 360 x 300 x 200 mm / 14.2 x 11.8 x 7.9 inch

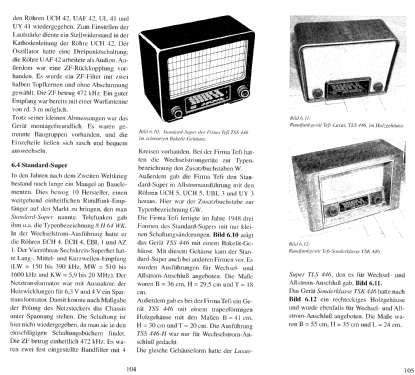

Source of data Tefifon, Das; Herbert Jüttemann / Radiokatalog Band 2, Ernst Erb

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
