- Country
- Germany
- Manufacturer / Brand
- TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
- Year
- 1958–1960
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 133279
-
- alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
- Brand: KD
- Number of Transistors
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Storage and/or dry batteries / 24 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

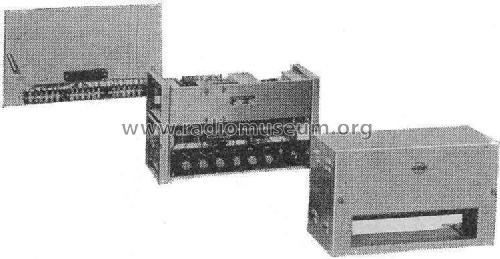

- Model: BTM24/30 - TeKaDe TKD, Süddeutsche
- Dimensions (WHD)
- 320 x 134 x 200 mm / 12.6 x 5.3 x 7.9 inch
- Notes
- TeKaDe 30-W-Vollverstärker BTM24/30.
5 Eingänge, 3 Ausgänge. Fernbedienung für Ein- und Ausschalten.
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Mentioned in
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
