• Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 4655
    • alternative name: Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
    • Brand: KD

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration; 1 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).

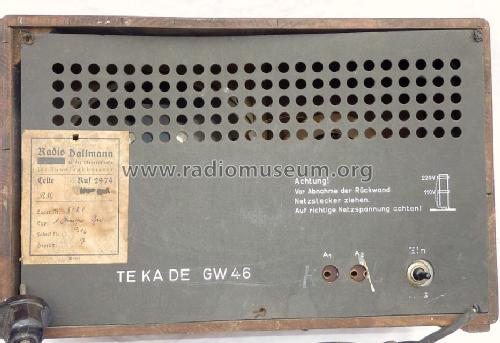

  • Power type and voltage
  • AC/DC-set / 110; 220 Volt

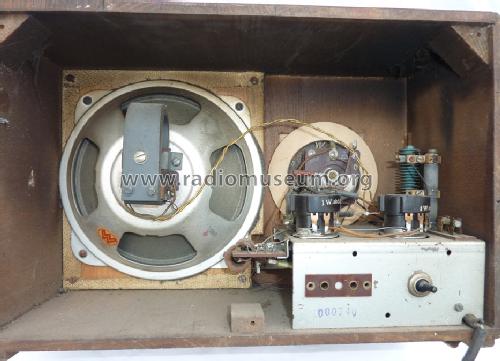

  • Loudspeaker
  • Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: GW46 - TeKaDe TKD, Süddeutsche
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 335 x 220 x 138 mm / 13.2 x 8.7 x 5.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Literature/Schematics (1)
  • -- Schematic
