Pegelmesskoffer PMK-59

Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 678755) Equipment

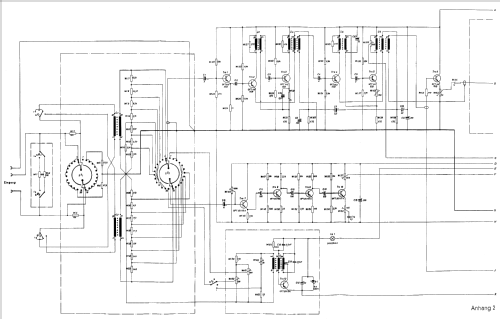

Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 678756) Equipment

Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 706385) Equipment
Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 679287) Equipment Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 679288) Equipment
Use red slider bar for more.
Pegelmesskoffer PMK-59; TeKaDe TKD, (ID = 679287) Equipment
TeKaDe TKD,: Pegelmesskoffer PMK-59 [Equipment] ID = 679287 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pegelmesskoffer PMK-59, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1959 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 21: GFT25 GFT25 GFT25 GFT25 GFT25 GFT25 GFT25 GFT43 GFT43 GFT44 GFT44 GFT44 GFT44 GFT44 GFT44 GFT44 GFT45 GFT45 GFT45 GFT45 GFT45
Main principle Superheterodyne (common); ZF/IF 650 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220 AC; DEAC ? Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Pegelmesskoffer PMK-59 - TeKaDe TKD, Süddeutsche
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 197 x 103 mm / 10.8 x 7.8 x 4.1 inch

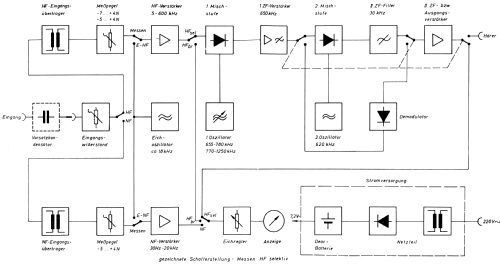

Notes Frequenzaufteilung:
Bereich I:
Empfangsfrequenz: 5 kHz bis 130 kHz,
Oszilltorfrequenz: 655 kHz bis 780 kHz,
Zwischenfrequenz: 650 kHz.

Bereich II:
Empfangsfrequenz: 120 kHz bis 600 kHz,
Oszilltorfrequenz: 770 kHz bis 1250 kHz,
Zwischenfrequenz: 650 kHz.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
