Verstärker 20e

Verstärker 20e; TeKaDe TKD, (ID = 817259) Ampl/Mixer Verstärker 20e; TeKaDe TKD, (ID = 1133321) Ampl/Mixer
Use red slider bar for more.
Verstärker 20e; TeKaDe TKD, (ID = 817259) Ampl/Mixer
TeKaDe TKD,: Verstärker 20e [Ampl/Mixer] ID = 817259 930x349
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verstärker 20e, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg:

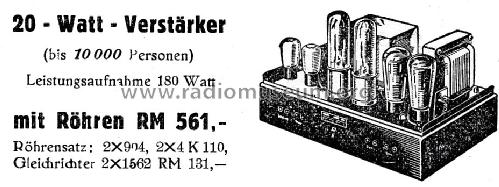

Aus Radio-Großkatalog Beuche, Nürnberg, 1934-35.

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1933 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: REN904 REN904 4K110 4K110 1562 or G715 1562 or G715
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Verstärker 20e - TeKaDe TKD, Süddeutsche
Material TUBES VISIBLE, material not known.
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 453 x 314 x 293 mm / 17.8 x 12.4 x 11.5 inch
Notes   Laut Werbung "Bis 10 000 Personen." Preis ohne Röhren (Satz 131,- RM).
Net weight (2.2 lb = 1 kg) 20.5 kg / 45 lb 2.5 oz (45.154 lb)
Price in first year of sale 430.00 RM +
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference FS-Bestückungstabelle (aber Fehler)
Mentioned in Radio-Großkatalog Beuche, Nürnberg, 1934-35
