Oscilloscope 585

Oscilloscope 585; Tektronix; Portland, (ID = 2286964) Equipment Oscilloscope 585; Tektronix; Portland, (ID = 2287265) Equipment
Oscilloscope 585; Tektronix; Portland, (ID = 2287266) Equipment Oscilloscope 585; Tektronix; Portland, (ID = 299795) Equipment
Oscilloscope 585; Tektronix; Portland, (ID = 300036) Equipment Oscilloscope 585; Tektronix; Portland, (ID = 300038) Equipment
Oscilloscope 585; Tektronix; Portland, (ID = 2288083) Equipment Oscilloscope 585; Tektronix; Portland, (ID = 2288084) Equipment
Use red slider bar for more.
Oscilloscope 585; Tektronix; Portland, (ID = 2286964) Equipment
Tektronix; Portland,: Oscilloscope 585 [Equipment] ID = 2286964 1400x1788
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 585, Tektronix; Portland, OR:

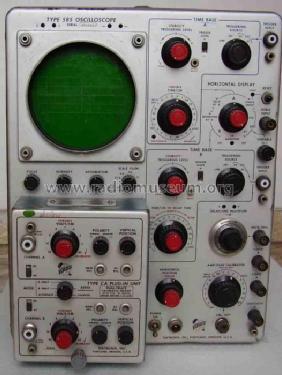

Front of 585, cleaned

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1959–1963 Category: Service- or Lab Equipment
Valves / Tubes 73: 6AL5 6AU5 6AU6 6CL6 6CY5 6DJ8 6922 12AL5 12AU6 12AU7 12AX7 12B4 5651 5642 6080 6939 or 7699
Semiconductors (the count is only for transistors) 3:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 105-250 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Oscilloscope 585 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 16.7 x 24 inch / 330 x 424 x 610 mm
Notes 585 is a mainframe oscilloscope capable of operating with the type 80 single channel plug-in from dc up to 100 MHz with a risetime better than 3.5 ns. Sweep rate as high as 10 ns/cm is possible with 5× magnifier.
Trigger uses a tunnel diode regenerator to operate with input signals as low as 2 mm of vertical deflection. Two balanced distributed amplifiers are used in the vertical amplifying chain: the first one, using seven 6DJ8, before the delay line and the second one, whit five 6DJ8, between the line and the deflection plates driver. The CRT itself uses vertical distributed deflection, with six deflection plate pairs driven by a transmission line, the signal propagating toward the front of the tube at the same velocity of the electron beam.
Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 1'675.00 $
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

Model page created by Emilio Ciardiello. See "Data change" for further contributors.
