Oscilloscope 310A

Oscilloscope 310A; Tektronix; Portland, (ID = 1563178) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139772) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139773) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139774) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139775) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139776) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139777) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139778) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139779) Equipment

Oscilloscope 310A; Tektronix; Portland, (ID = 139780) Equipment
Oscilloscope 310A; Tektronix; Portland, (ID = 139636) Equipment Oscilloscope 310A; Tektronix; Portland, (ID = 139637) Equipment
Oscilloscope 310A; Tektronix; Portland, (ID = 139638) Equipment Oscilloscope 310A; Tektronix; Portland, (ID = 139639) Equipment
Oscilloscope 310A; Tektronix; Portland, (ID = 139640) Equipment Oscilloscope 310A; Tektronix; Portland, (ID = 324713) Equipment
Oscilloscope 310A; Tektronix; Portland, (ID = 746723) Equipment Oscilloscope 310A; Tektronix; Portland, (ID = 845515) Equipment
Oscilloscope 310A; Tektronix; Portland, (ID = 845516) Equipment Oscilloscope 310A; Tektronix; Portland, (ID = 1078744) Equipment
Use red slider bar for more.
Oscilloscope 310A; Tektronix; Portland, (ID = 139636) Equipment
Tektronix; Portland,: Oscilloscope 310A [Equipment] ID = 139636 500x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 310A, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1959 Category: Service- or Lab Equipment
Valves / Tubes 34: 6DJ8 6AU6 12AT7 6AL5 6AN8 8425 6BH6 6CL6 12AU7 12B4 5651 6AQ5 5642 3WP2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117/234 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope 310A - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 6.75 x 10 x 17 inch / 171 x 254 x 432 mm
Notes Tubes listed once per type.

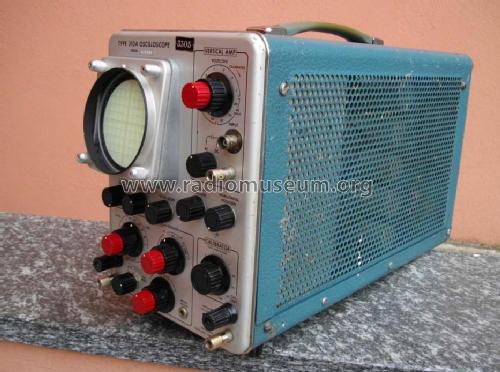

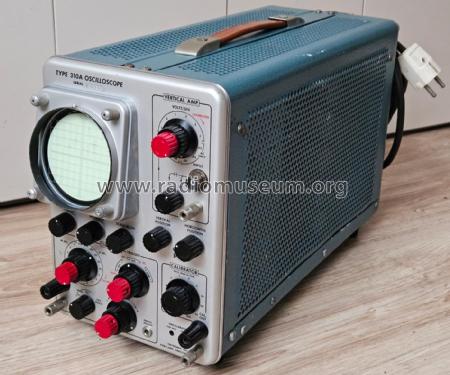

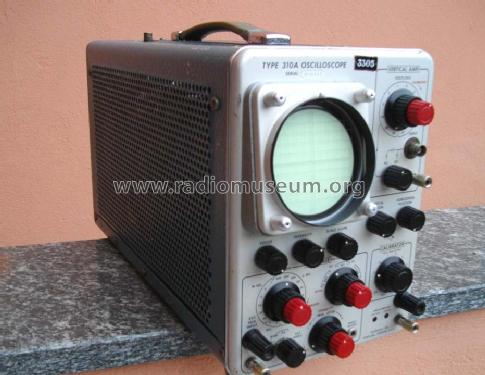

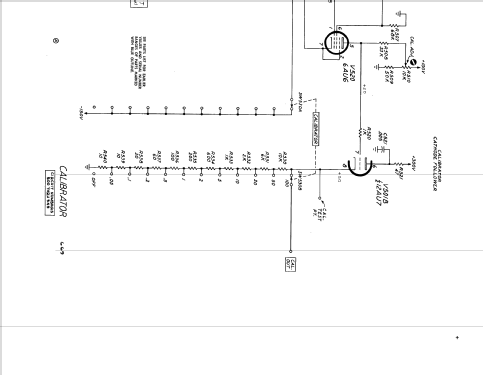

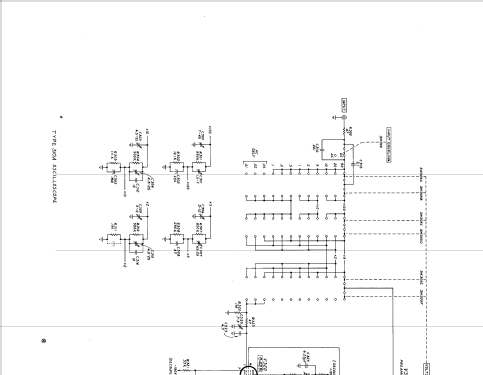

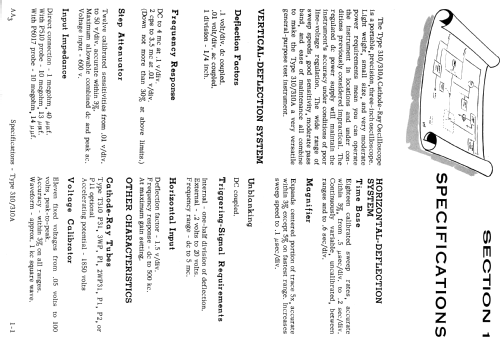

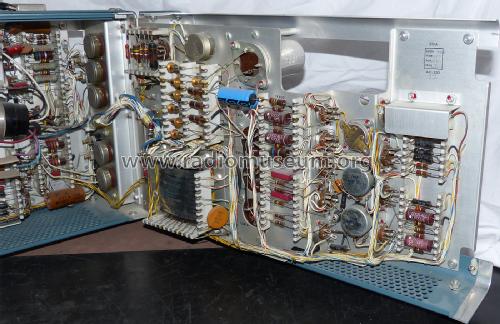

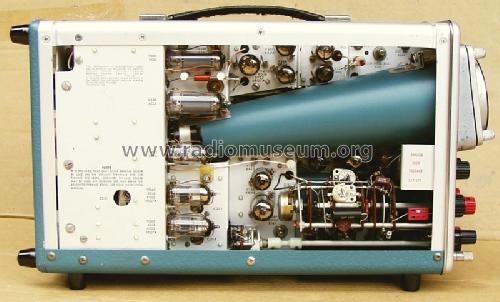

The Tektronix Type 310A Oscilloscope is a portable precision instrument designed for equipment maintenance or calibration at its point of use. A DC to four megahertz vertical system provides calibrated deflection factors from 0.01 to 50 volts/division (0.01 to 0.05 volts/division AC coupled only).
The trigger circuits provide stable triggering over the full vertical bandwidth. The horizontal deflection system provides calibrated sweep rates from 0.2 second to 0.5 microsecond/division.
A X5 magnifier allows each sweep rate to be increased five times and provides a maximum sweep rate of 0.1 microsecond/division in the .5µSEC position. X-Y measurements can be made by applying the vertical (Y) signal to the vertical INPUT connector and the horizontal (X) signal to the EXT HORIZ INPUT binding post on the rear panel (Horizontal Display switch set to EXT HORIZ). The regulated DC power supplies maintain constant output over a wide variation of line voltages and frequencies. Total power consumption is about 175 watts.
Net weight (2.2 lb = 1 kg) 10.7 kg / 23 lb 9.1 oz (23.568 lb)
Price in first year of sale 675.00 $
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

Model page created by Felix Schaffhauser. See "Data change" for further contributors.



All listed radios etc. from Tektronix; Portland, OR
