Oscilloscope 465

Oscilloscope 465; Tektronix; Portland, (ID = 1518622) Equipment

Oscilloscope 465; Tektronix; Portland, (ID = 1518623) Equipment

Oscilloscope 465; Tektronix; Portland, (ID = 1518624) Equipment

Oscilloscope 465; Tektronix; Portland, (ID = 1518625) Equipment

Oscilloscope 465; Tektronix; Portland, (ID = 1518626) Equipment

Oscilloscope 465; Tektronix; Portland, (ID = 1518627) Equipment

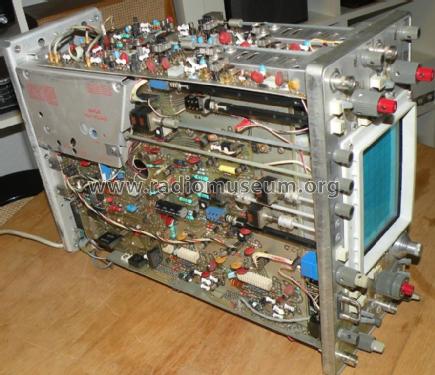

Oscilloscope 465; Tektronix; Portland, (ID = 2505851) Equipment Oscilloscope 465; Tektronix; Portland, (ID = 2505853) Equipment
Oscilloscope 465; Tektronix; Portland, (ID = 2505856) Equipment Oscilloscope 465; Tektronix; Portland, (ID = 1518411) Equipment
Oscilloscope 465; Tektronix; Portland, (ID = 1518426) Equipment Oscilloscope 465; Tektronix; Portland, (ID = 1518427) Equipment

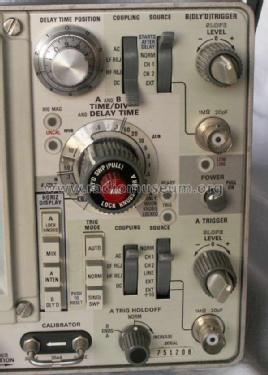

Oscilloscope 465; Tektronix; Portland, (ID = 1518428) Equipment Oscilloscope 465; Tektronix; Portland, (ID = 1518429) Equipment
Oscilloscope 465; Tektronix; Portland, (ID = 1669997) Equipment Oscilloscope 465; Tektronix; Portland, (ID = 1669998) Equipment
Use red slider bar for more.
Oscilloscope 465; Tektronix; Portland, (ID = 2505851) Equipment
Tektronix; Portland,: Oscilloscope 465 [Equipment] ID = 2505851 947x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 465, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1973–1983 Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 99-121; 104-126; 108-132; 198-242; 208-252; 216-264 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope 465 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 285 x 145 x 460 mm / 11.2 x 5.7 x 18.1 inch
Notes

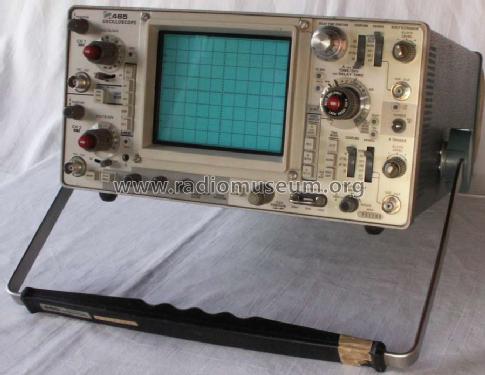

Tektronix 465 Oscilloscope

- Bildröhre: 8x10 cm (Phosphor P31)
- Nachbeschleunigung: 15,5 kV
- Zweikanal Ausführung, Betriebsarten CH1, ALT, ADD, CHOP, CH2
- Bandbreite: 100 MHz, umschaltbar auf 20 MHz
- Anstiegszeit: 3,5 ns
- Y-Eingangsimpedanz: 1 MΩ || 20pF
- Abschwächer: 5 mV bis 5 V/Skalenteil (ohne Tastkopf)
- Y-Verzögerungsleitung zur Darstellung von Impulsflanken.

Triggerung

- Intern, DC bis 25 MHz ab 50 mV oder 0,3 Skalenteile,
25MHz bis 100 MHz 1,5 Skalenteile
- Extern, 150 mV bei 100 MHz

X-Ablenkung

- Zeitbasis, 50 ms/Skalenteil bis 0,05 µs/Skalenteil, zusätzliche Dehnung x10
- Doppelte Zeitbasis
- Externe X-Ablenkung

Standard Zubehör

- Zwei Tastköpfe Typ P6106 1:10, 10 MΩ || 13pF, Kabel 2 m lang.



Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Mentioned in - - Manufacturers Literature (Tektronix catalog 1971, p.3 / pp.143++)

Model page created by Walter Fackler. See "Data change" for further contributors.
