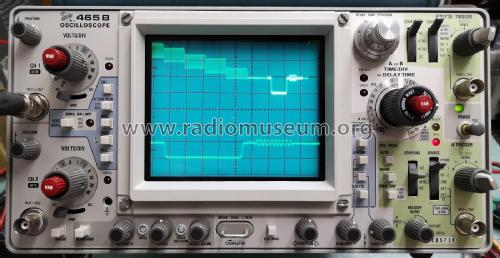

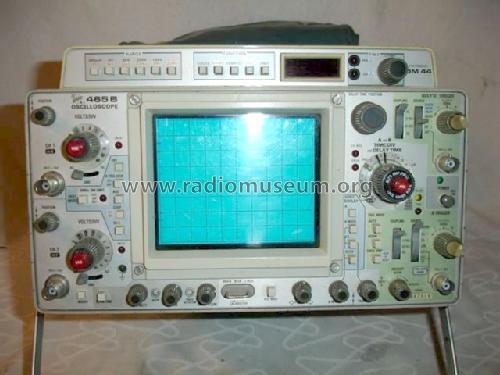

Oscilloscope 465B

Oscilloscope 465B; Tektronix; Portland, (ID = 1002522) Equipment Oscilloscope 465B; Tektronix; Portland, (ID = 587958) Equipment
Oscilloscope 465B; Tektronix; Portland, (ID = 1043226) Equipment Oscilloscope 465B; Tektronix; Portland, (ID = 1342439) Equipment
Oscilloscope 465B; Tektronix; Portland, (ID = 1342440) Equipment Oscilloscope 465B; Tektronix; Portland, (ID = 1342441) Equipment
Oscilloscope 465B; Tektronix; Portland, (ID = 2518204) Equipment Oscilloscope 465B; Tektronix; Portland, (ID = 2584061) Equipment
Use red slider bar for more.
Oscilloscope 465B; Tektronix; Portland, (ID = 1002522) Equipment
Tektronix; Portland,: Oscilloscope 465B [Equipment] ID = 1002522 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 465B, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1979/1980 Category: Service- or Lab Equipment
Valves / Tubes 1: 154-0676-15
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115-242 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope 465B - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 292 x 157 x 460 mm / 11.5 x 6.2 x 18.1 inch
Notes Dual channel scope 100 Mc bandwidth. Input impedance 2 MOhm/20 pF. Y deflection: 5 mV/div to 5 v/div in 10 steps. Calibration source: 1kHz. Dual time base for delayed display.
CRT: 8 x 10cm; Standard Phosphor: P31; Optional: P11.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 2'599.00 $
External source of data BAMA
Mentioned in - - Data from my own collection
Literature/Schematics (1) Funkschau (1/1980 S. 72 / Neuentwicklung)

Model page created by Jos Lauth. See "Data change" for further contributors.
