Oscilloscope 533 A

Oscilloscope 533 A; Tektronix; Portland, (ID = 399314) Equipment Oscilloscope 533 A; Tektronix; Portland, (ID = 399315) Equipment

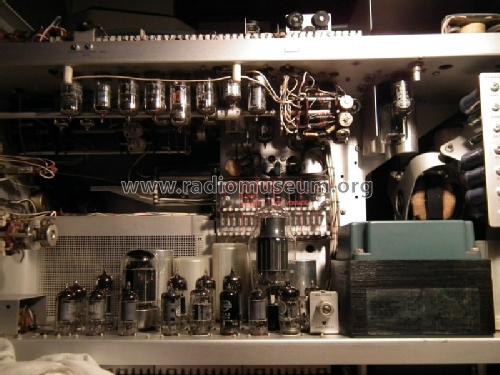

Oscilloscope 533 A; Tektronix; Portland, (ID = 1083296) Equipment Oscilloscope 533 A; Tektronix; Portland, (ID = 1083297) Equipment
Oscilloscope 533 A; Tektronix; Portland, (ID = 1083298) Equipment
Use red slider bar for more.
Oscilloscope 533 A; Tektronix; Portland, (ID = 399314) Equipment
Tektronix; Portland,: Oscilloscope 533 A [Equipment] ID = 399314 667x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 533 A, Tektronix; Portland, OR:
Eigenes Gerät, bestückt mit Einschub 1A1

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1960–1972 ? Category: Service- or Lab Equipment
Valves / Tubes 50:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Oscilloscope 533 A - Tektronix; Portland, OR
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 323 x 415 x 600 mm / 12.7 x 16.3 x 23.6 inch
Notes Oscilloscope accepting all Tektronix "letter" and "1" series plug-ins. Bandwidth nominal 15 MHz.
Net weight (2.2 lb = 1 kg) 31 kg / 68 lb 4.5 oz (68.282 lb)
Source of data - - Data from my own collection

Model page created by Martin Bösch. See "Data change" for further contributors.
