Oscilloscope 547

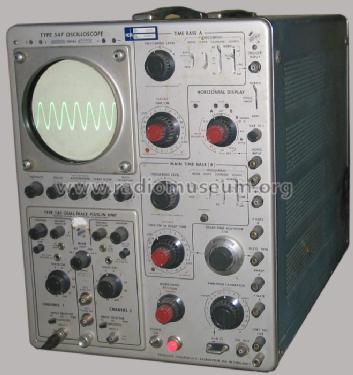

Oscilloscope 547; Tektronix; Portland, (ID = 465837) Equipment Oscilloscope 547; Tektronix; Portland, (ID = 583053) Equipment

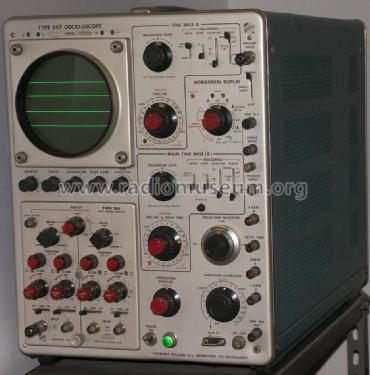

Oscilloscope 547; Tektronix; Portland, (ID = 1030448) Equipment Oscilloscope 547; Tektronix; Portland, (ID = 1030449) Equipment
Oscilloscope 547; Tektronix; Portland, (ID = 1480543) Equipment
Use red slider bar for more.
Oscilloscope 547; Tektronix; Portland, (ID = 465837) Equipment
Tektronix; Portland,: Oscilloscope 547 [Equipment] ID = 465837 563x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 547, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1964 ? Category: Service- or Lab Equipment
Valves / Tubes 40: 5642 5642 5642 5642 5642 6080 6080 6197 12AT7 12AU6 12AU7 12AU7 12AX7 12AX7 12AX7 6AU5 6AU6 6AU6 6AU6 6AU6 6AU6 6BY8 6CW5 6CW5 6CW5 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 6DJ8 0G3 T5470-31-2 or T5471-31-2
Semiconductors (the count is only for transistors) 43:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope 547 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 16.75 x 24 inch / 330 x 425 x 610 mm
Notes
  • 50MHz-Labor-Oszilloskop
  • Zwei getrennte, identische Zeitbasen (nur bei Verwendung der Plug-in-Module 1A1 (NL), 1A1 (USA), 1A2, oder 1A4)
  • Die Plug-in-Module der "Buchstaben-Serie" und der 1er-Serie sind für dieses Gerät verwendbar
  • Die Triggerung arbeitet mit Tunneldioden (nicht mehr verfügbar)

  • 50Mc laboratory oscilloscope
  • Two independent timebases (only with plug in units 1A1 (NL), 1A1 (USA), 1A2, or 1A4)
  • It uses letter-series and 1-series plug-ins
  • It uses tunnel diodes for the trigger (obsolete)
Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) Complete manual and schematics available

Model page created by Bryce Ringwood. See "Data change" for further contributors.
