Oscilloscope 545

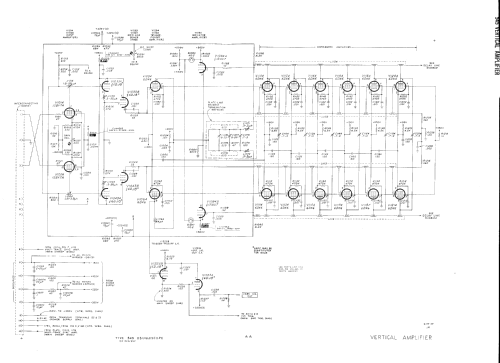

Oscilloscope 545; Tektronix; Portland, (ID = 1112937) Equipment

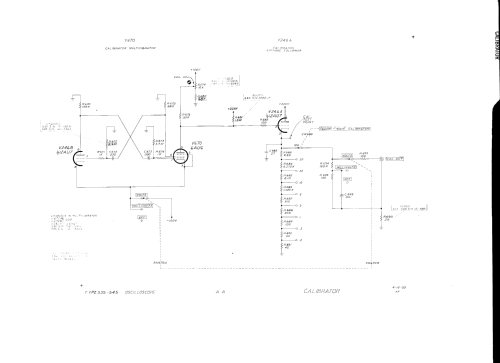

Oscilloscope 545; Tektronix; Portland, (ID = 1112939) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112940) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112941) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112942) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112944) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112946) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112947) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112948) Equipment

Oscilloscope 545; Tektronix; Portland, (ID = 1112949) Equipment
Oscilloscope 545; Tektronix; Portland, (ID = 167059) Equipment Oscilloscope 545; Tektronix; Portland, (ID = 167060) Equipment
Oscilloscope 545; Tektronix; Portland, (ID = 166804) Equipment Oscilloscope 545; Tektronix; Portland, (ID = 166805) Equipment
Oscilloscope 545; Tektronix; Portland, (ID = 167061) Equipment
Use red slider bar for more.
Oscilloscope 545; Tektronix; Portland, (ID = 167059) Equipment

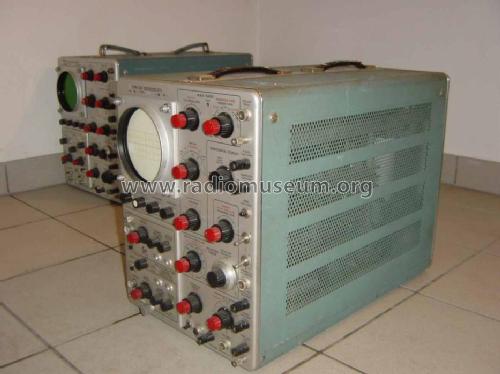

Tektronix; Portland,: Oscilloscope 545 [Equipment] ID = 167059 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope 545, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1955 Category: Service- or Lab Equipment
Valves / Tubes 74:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110, 117, 124, 220, 234, 248 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Oscilloscope 545 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 425 x 610 mm / 13 x 16.7 x 24 inch
Notes 12ns risetime, DC to 30MHz vertical bandwidth.
53K/54K vertical plug-in required for maximum bw.
For technical documents see also model 535.
Net weight (2.2 lb = 1 kg) 29.5 kg / 64 lb 15.6 oz (64.978 lb)
Price in first year of sale 1'450.00 $
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Electronics, April, 1955

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
