PAL Vectorscope 1721

PAL Vectorscope 1721; Tektronix; Portland, (ID = 1590728) Equipment PAL Vectorscope 1721; Tektronix; Portland, (ID = 1590729) Equipment

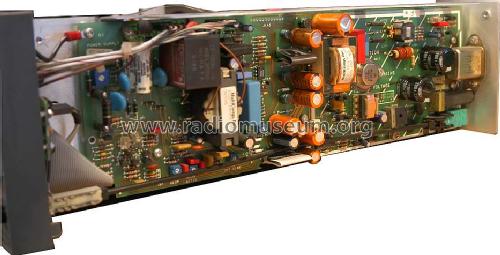

PAL Vectorscope 1721; Tektronix; Portland, (ID = 1590730) Equipment
Use red slider bar for more.
PAL Vectorscope 1721; Tektronix; Portland, (ID = 1590728) Equipment
Tektronix; Portland,: PAL Vectorscope 1721 [Equipment] ID = 1590728 933x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model PAL Vectorscope 1721, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1990 ? Category: Service- or Lab Equipment
Valves / Tubes 1: 154-0902-01
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle none
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 90-250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: PAL Vectorscope 1721 - Tektronix; Portland, OR
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 215 x 133 x 460 mm / 8.5 x 5.2 x 18.1 inch
Notes

The 1721 is an 8-1/2”--wide by 5-1/4”--high Vectorscope,
(System I, B, etc., PAL) versions can be powered from an ac source or,
with the addition of a field upgrade kit (1700F10), from 12 Vdc. The crt occupies approximately two-thirds of the front-panel area. The inputswitching allows for the display of Channel A, Channel B, or both inputs. Synchronization can be either internal or external. The 1721 offers a choice of individual displays of vectors or XY or both.
The XY display, with accompanying graticule scale, allows this vectorscope to
be used for stereo audio monitoring. In addition to the usual color bar amplitude and phase relationships, the vector display can also be used to make differential gain and phase measurements. The 1721 has the +V display that is used to check PAL system color encoders. Full 360°phase shift and a test circle are also included in these vectorscopes.

Stereo audio input for XY display is balanced line through the rear-panel REMOTE connector.

CRT Display
Viewing area: 80x100mm
Accelerating Potential: 15.75 kV
Graticule: Internal vector, variable scale illumination

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Price in first year of sale 3'240.00 USD
Mentioned in - - Manufacturers Literature

Model page created by Pius Steiner. See "Data change" for further contributors.
