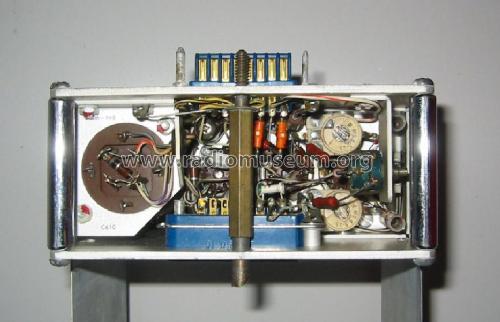

Plug-in adapter 81

Tektronix; Portland, OR

  • Year
  • 1960–1964
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 113150

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Plug-in adapter 81 - Tektronix; Portland, OR
  • Notes
  • The 81 adapter interfaces the 580 series mainframes (581, 585, 585A) with the letter series plug-ins, such as the CA.
  • Mentioned in
  • Tektronix 1964 Abridged Catalog
  • Literature/Schematics (1)
  • - - Manufacturers Literature (1960)
  • Author
  • Model page created by Emilio Ciardiello. See "Data change" for further contributors.
