• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1967 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 206492

• Number of Tubes
• 2

• Valves / Tubes
• 6AL5 12AT7

• Number of Transistors
• 5

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

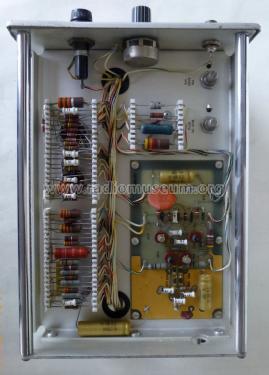

• Model: Plug-In Test Unit 1M1 - Tektronix; Portland, OR

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 5.875 x 7 x 10 inch / 149 x 178 x 254 mm

• Notes
• Along with many other Tektronix modules, this unit had its model designation changed from Model TU7 to Model 1M1 in the mid 1960s to comply with model designation format standardization by Tektronix. The Model 1M1 Plug-In Test Unit is a single-unit calibration aid for use with all Tektronix 530, 540, and 55o series oscilloscopes. An input connector on the front panel permits application of various external signals for use in the calibration procedure. This self-contained unit also generates fast-rise pulses for checking risetime and adjusting transient response of the oscilloscope vertical amplifier. This unit also permits checking the regulation limits of the poser supplies within an oscilloscope. It provides a quick check of the oscilloscope alternate sync and chopped blanking circuitry.

• Net weight (2.2 lb = 1 kg)
• 3.75 lb (3 lb 12 oz) / 1.703 kg

• Price in first year of sale
• 50.00 $

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hank Kaczmarski. See "Data change" for further contributors.
